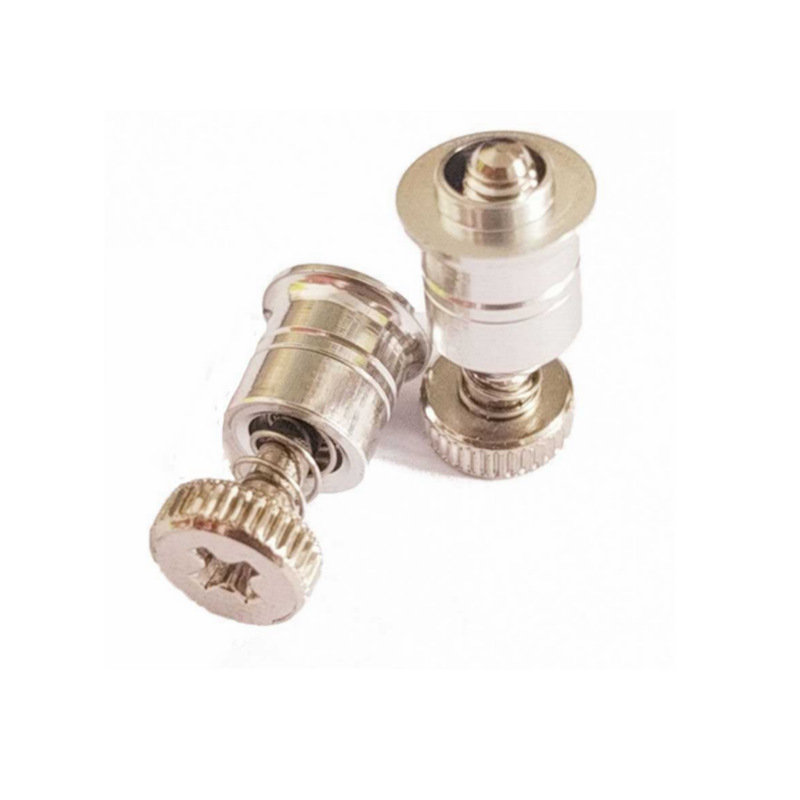

Captive Panel Screw, Screw Head, Spring-loaded, Self-Clinching – Type PF7MF
PF7M and PF7MF captive panel screws feature two distinct mounting styles for permanent installation into thin sheets. Both feature small, compact, and low-profile designs for limited access areas and anti-cross-threading technology that corrects off-angle installations, aligns components, and slides through clogged internal threads. The Phillips recess allows for tool or hand operation.
About the captive panel screw PF7MF
- Appropriate for close centerline-to-edge applications.
- Does not require high installation force.
- Installs into any panel hardness.
- Installs flush on back side of panel.
PF7MF PF7MF captive panel screws Data sheet
| Products name: | PF7MF PF7MF captive panel screws |
| Material: | heat-treated carbon steel,stainless steel,Nickel |
| Finish: | Bright Nickel,Bright Nickel Over copper flash |
| Measurement system: | Metric, Imperial (Inch) |
| MOQ: | 1000pcs |
| Packing | Cartons+plastic Bags |
| Delivery time | 7-15 Working Days |
