PF16 PF26 PF51 PF52 Stainless Steel Knurling Knob Spring Loaded Spring Captive Panel Screw
PF16 PF26 PF51 PF52 Stainless Steel Knurling Knob Spring Loaded Spring Captive Panel Screw provide an attractive polished finish and ample shaft length to mate with threaded receptacle on frame, throughout a range of panel thicknesses. They are available with or without spring ejection to retract the screw body when threads are disengaged.
Captive screw PF16 PF26 PF51 PF52 series flat-head slotted stainless steel Description
1.Large highly polished knobs present a blemish-free finish
2.Elongated shafts provide for easy grip, high above panel
3.All stainless steel designs provide corrosion resistance
4.53 Class includes fully-retracting spring-ejected screws
5.Two methods of flare-in installation – straight hole or chamfered hole
6.Available Options
Available in bright polished stainless steel or with screw and standoff in black finish
Special installation tools are available by fastener size for flaring standoffs and affixing retainer rings
7.Industry Applications
Automotive, Trucks,Computers,Electronic Enclosures,Exhibits/Signs,Food Equipment,Industrial Enclosures,Medical,Networking,Telecommunications,Vending Machines

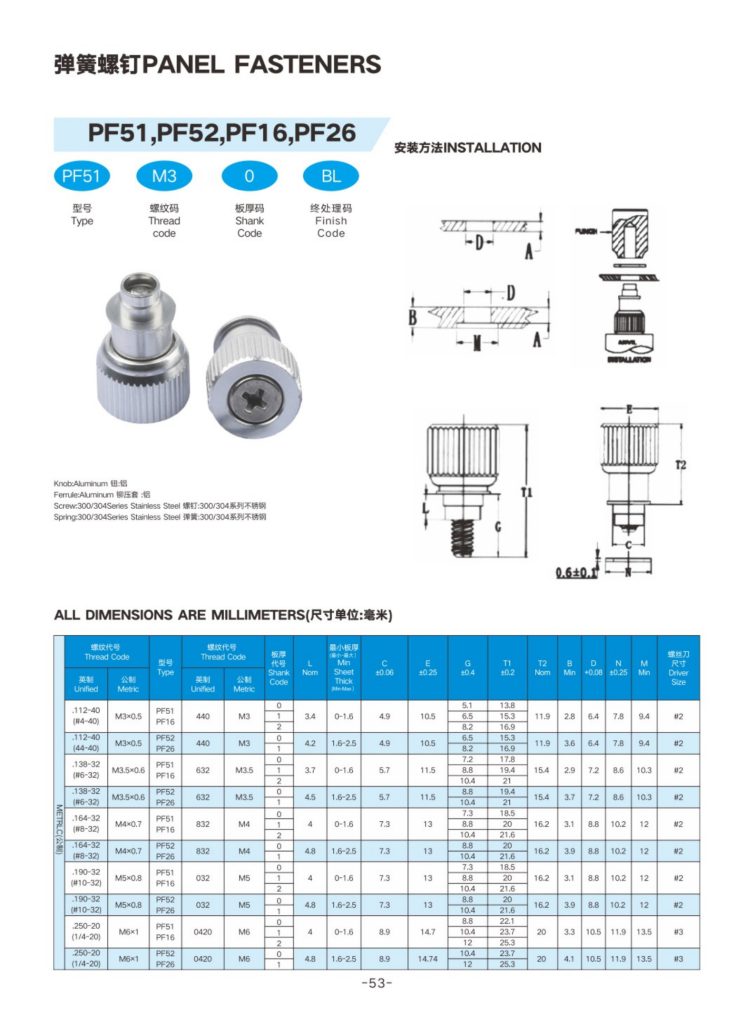

PF16 PF26 PF51 PF52 Captive Panel Screw Date sheet
Products name: | PF16 PF26 PF51 PF52 Captive Panel Screw |
Material: | hardened carbon steel,stainless steel,Aluminum |
Finish: | zinc plating,passivated |
Measurement system: | Metric, Imperial (Inch) |
MOQ: | 1000pcs |
Packing | Cartons+plastic Bags |
Delivery time | 7-15 Working Days |
